ID: 146625
Omschrijving

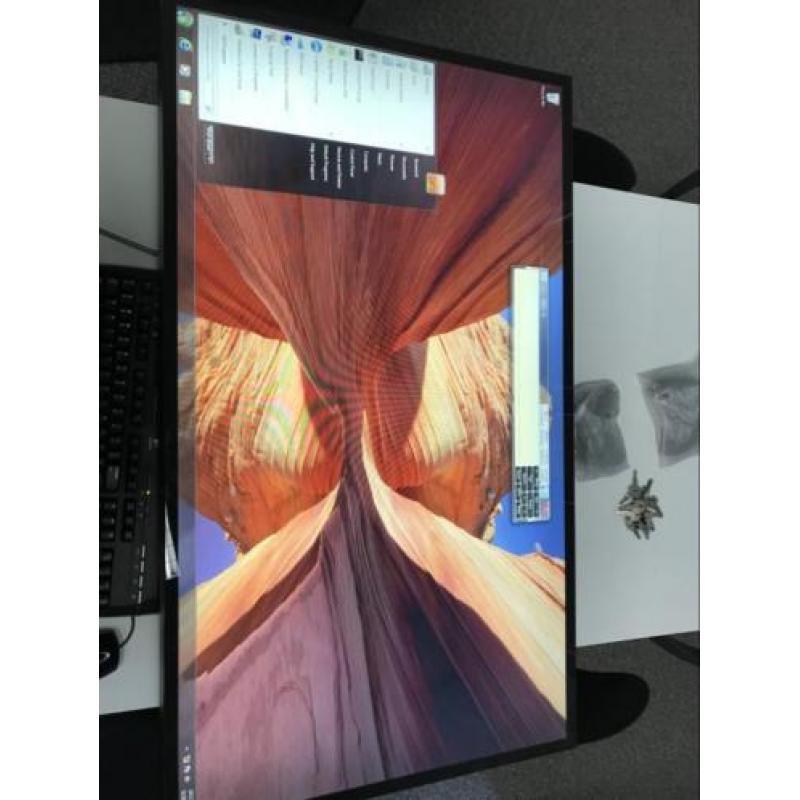

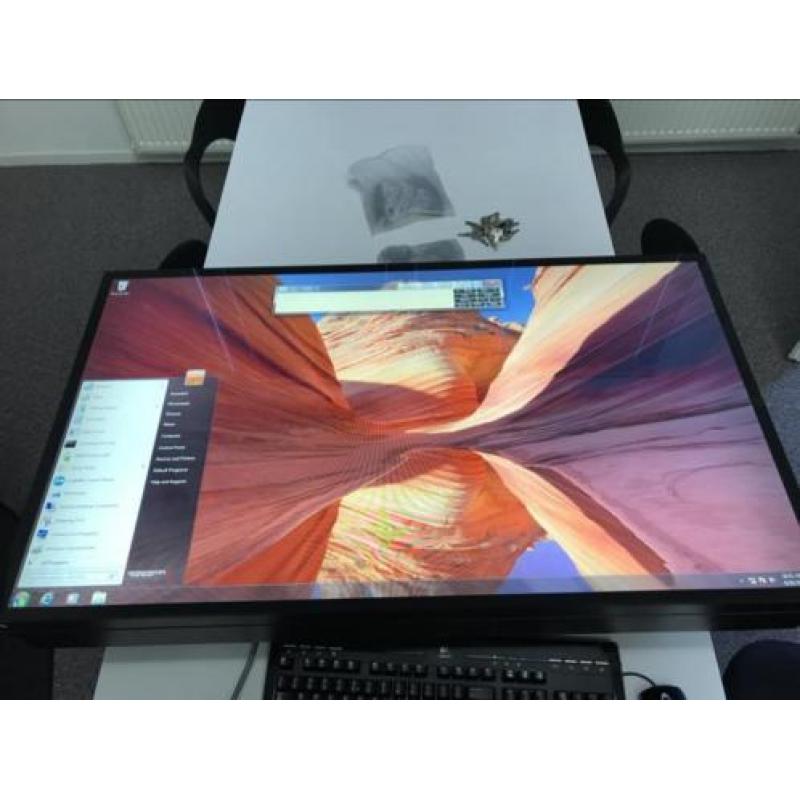

Gebruikte miltitraction multi touch table
Voor meer info graag bellen.
Display Specifications
Display Technology TFT LCD
Display Size 42\" 16:9 Wide
Native Resolution Full HD 1920 x 1080
Display Colors 16.7 million
Display Active Area 930 x 523 mm
Pixel Pitch 0.48 x 0.48 mm
Pixel Response Time 8 ms grey to grey
Brightness 400 cd/m2
Contrast Ratio 3500 :1 typical
Picture Frame Rate 60 Hz
Backlight White LED Matrix Array
Viewing Angle 178°
Touch Sensing Details
Tracking Software Embedded MultiTaction Extensible Hybrid Tracking Engine
Touch Input Types Single finger, multiple fingers, single hand, multiple hands and users, objects with optical markers. Click, hold and drag.
Hand Recognition Each finger identified to certain hand
Object Recognition Supported with 2D fiducial markers
Number of Simultaneous Touch Inputs Unlimited
Number of Simultaneous Users Unlimited (separate hands)
Positional accuracy 2 mm, directional compensation
Relative accuracy Sub-pixel accuracy
Touch Latency 10 ms typical
Tracking Data Outputs/APIs Multi-Format Tracking Output: Low level C++, TUIO, XML stream, Windows 7 Touch
Operating System Support Windows 7. (Linux, Mac OS X with external computer)
Development Environment Support Most major programming languages and environments (e.g. MS Surface 2 SDK, Win 7 tools, TUIO-compatible systems)
Software Development Kit Cornerstone SDK available for C++/OpenGL (Windows 7, Linux, Mac OS X)
Stackability Up to 24 Cells can be connected to run a single Multi-touch application
